24V Clothes Drying Rack Motor Module

Description

Shipping, Customs & Duties Notice

For the logistics services we use, shipments to most major developed countries are delivered door to door, and the shipping fee includes customs clearance, duties, and taxes. If a particular destination, route, or carrier requires the buyer to pay import duties/taxes separately or provide information for customs declaration or clearance, we will contact you before shipment and will only ship after confirming the required information with you. Please order with confidence and do not worry about unexpected customs charges after purchase.

What It Is

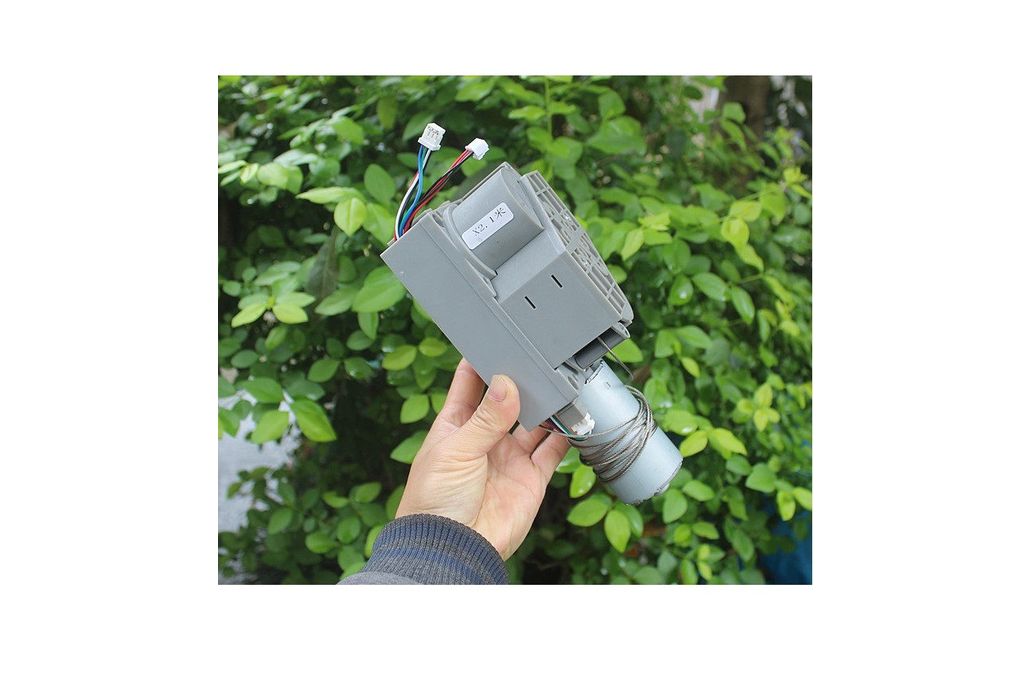

This is a reliable and durable 24V motor module originally designed around the cable-winding mechanism commonly used in electric clothes drying rack systems.

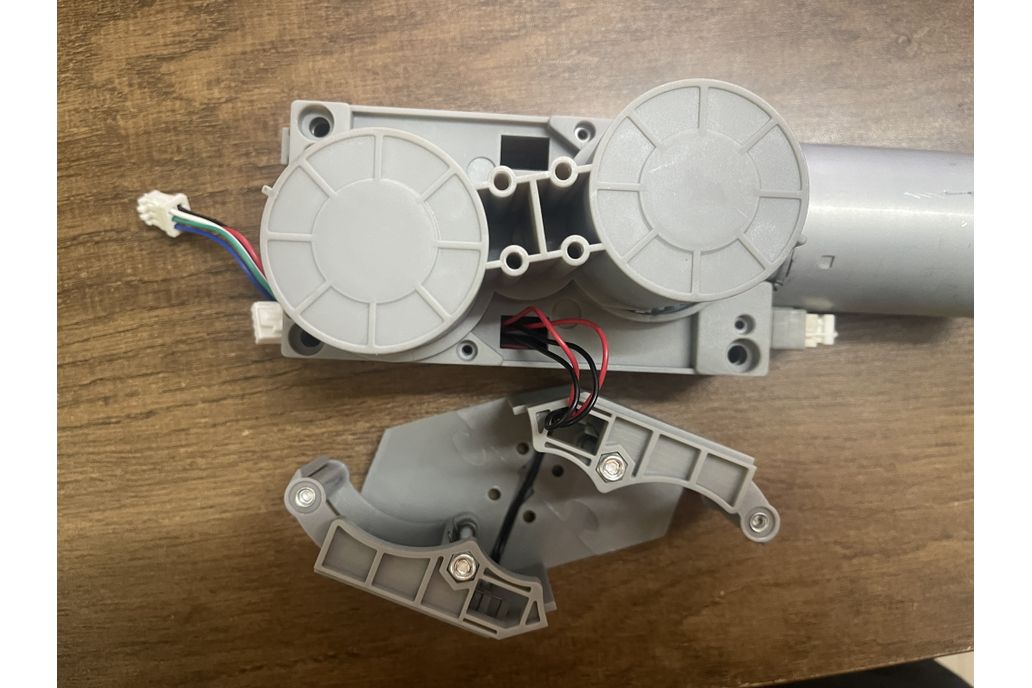

It combines a high-reduction DC gearmotor, dual cable drums, steel wire rope, Hall feedback, and limit-switch wiring in one compact assembly.

Why I Am Offering This

I make this module while building several DIY motion projects of my own.

A normal gearmotor only gives you rotary motion. But in many projects, the real challenge is finding a compact and affordable mechanism that can reliably pull in and release a relatively long cable.

Because this mechanism was made for electric clothes drying rack use, it is especially appealing when you want a motorized lifting solution that is proven, practical, reliable, and durable.

It is also useful when you need to convert motor rotation into real cable pull-and-release motion without designing the gearbox, cable drums, and basic wiring system from scratch.

Main Features

• Compact 24V DC cable-winder gearmotor

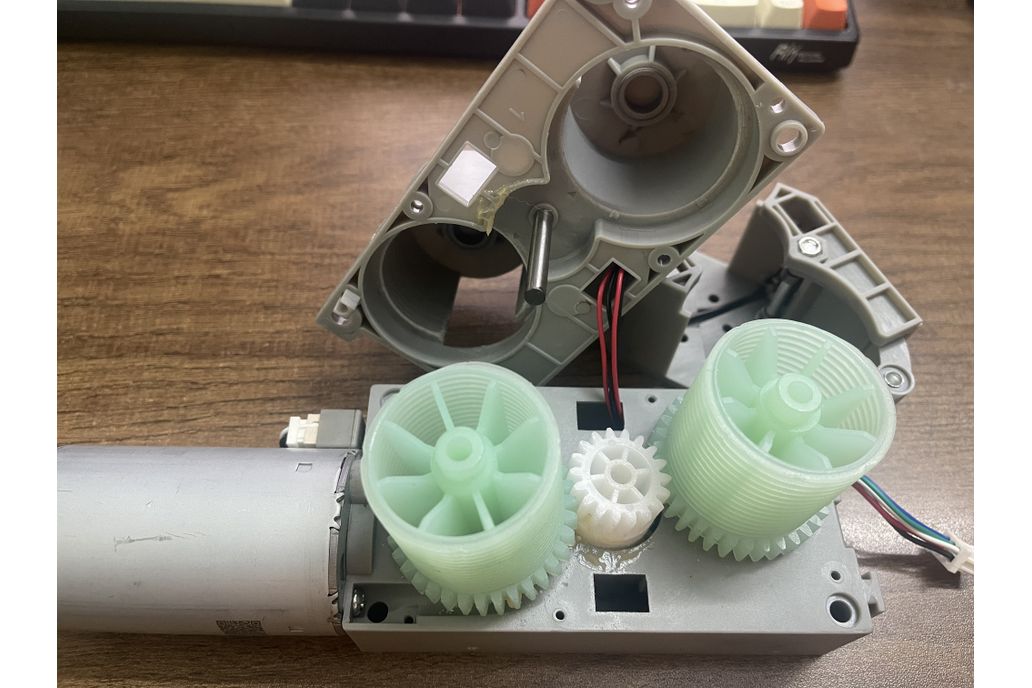

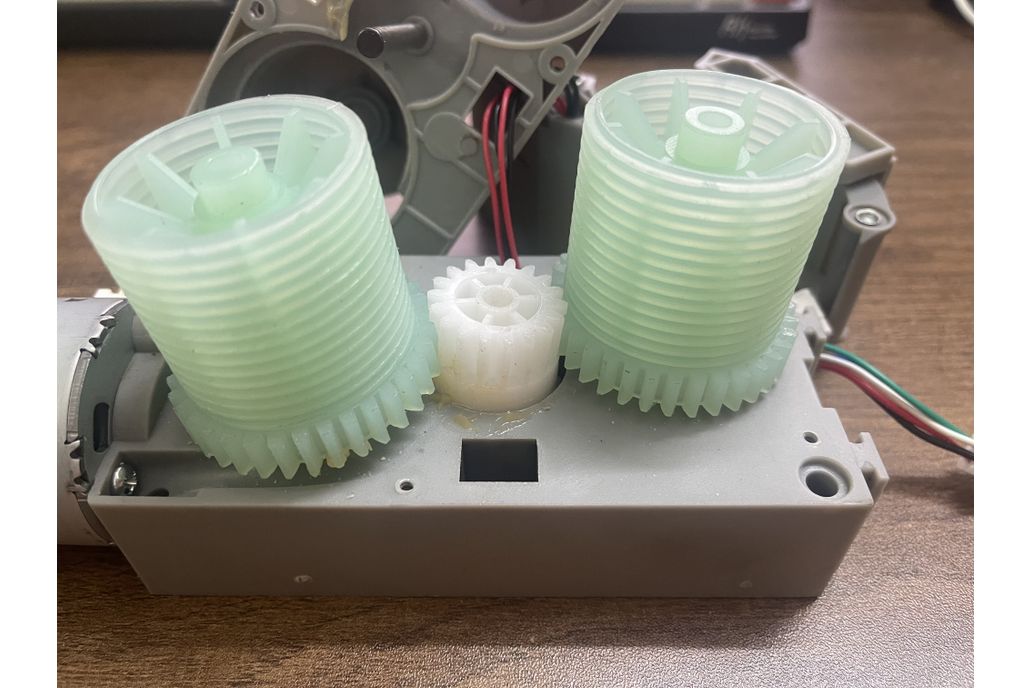

• Dual synchronized cable drums

• Winds and unwinds two steel wire ropes at the same time

• Approx. 2.1m supplied steel wire rope length

• High-reduction gearbox for strong low-speed pulling force

• Designed from an electric clothes drying rack motor mechanism

• Reliable and durable structure for repeated lifting motion

• Works at rated 24V DC

• Also tested working at 12V DC with lower speed and reduced pulling force

• Hall sensor output for speed or motion feedback

• Two built-in end-limit switch circuits

• Pre-wired connectors included

• Can be adapted for a single-cable project by removing an unused drum / cable section

Typical Uses

• Electric clothes drying rack repair or retrofit projects

• DIY lifting mechanisms

• Cable-driven actuators

• Kinetic sculptures

• Interactive installations

• Moving props and displays

• Motorized shelves and cabinets

• Educational motion-control projects

• Arduino, ESP32, STM32, relay, PLC, and H-bridge projects

Specifications

• Rated voltage: DC 24V

• Nominal motor power: 50W

• Tested operating voltage: DC 12V to 24V

• Cable mechanism: dual drum steel-wire-rope winder

• Steel wire rope length: approx. 2.1m

• Weight: approx. 0.95kg

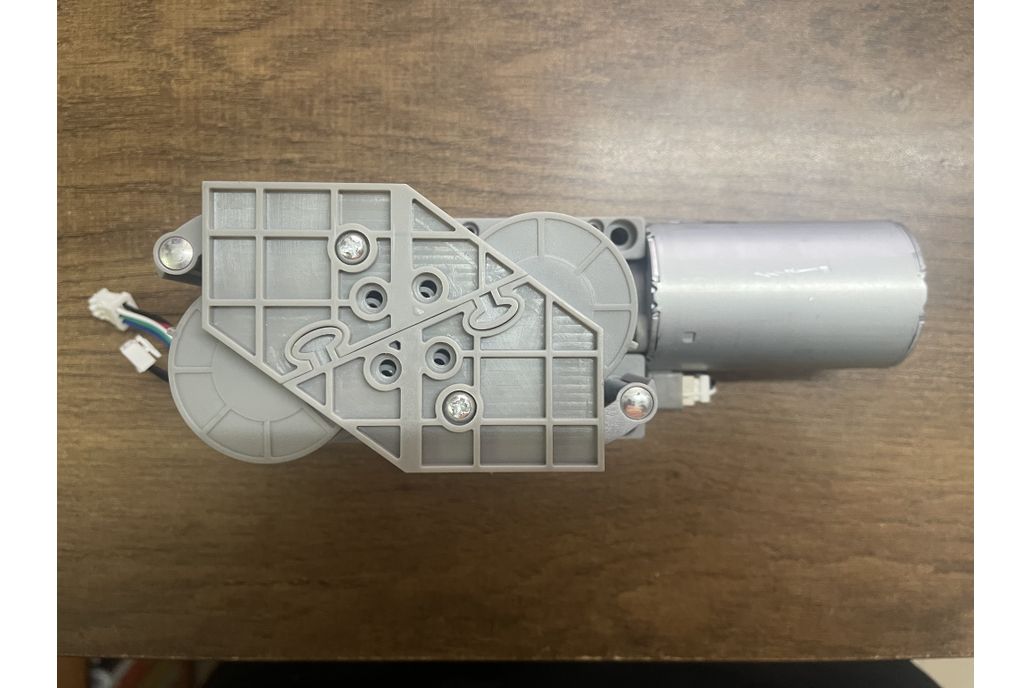

• Overall length: approx. 207mm

• Motor section length: approx. 77mm

• Gearbox / cable-winder section length: approx. 130mm

• Overall height: approx. 82.5mm

• Motor diameter: approx. 46mm

• Mounting-hole diameter: approx. 5.5mm

• Mounting-hole spacing: approx. 54mm × 112mm

Wiring

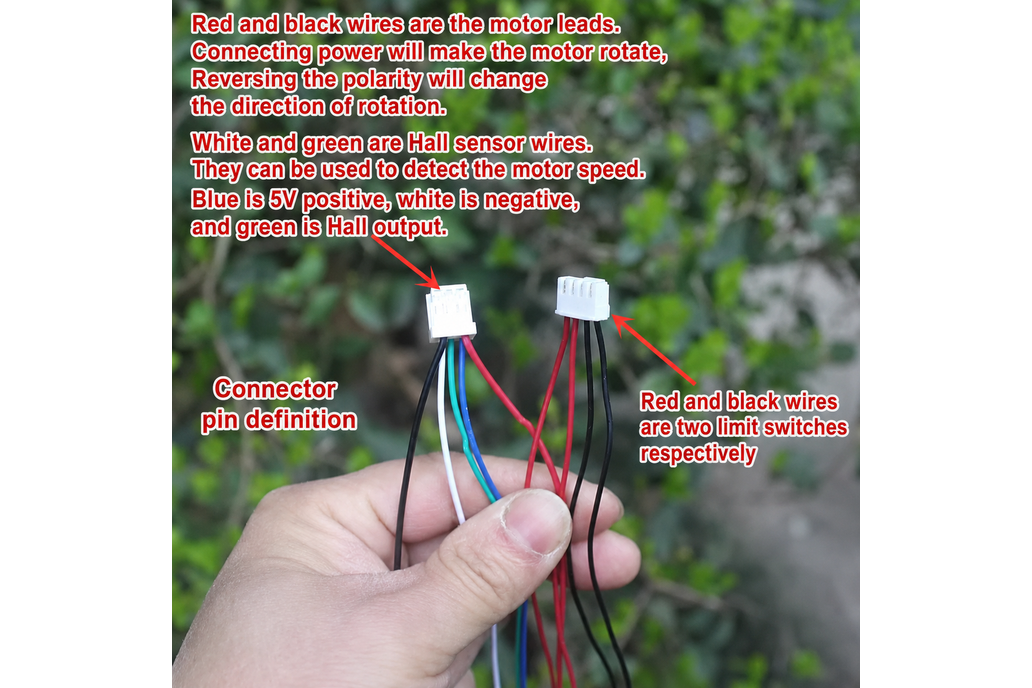

Motor Power

• Red / Black: DC motor power

• Reverse polarity to reverse the winding direction.

Hall Sensor

• Blue: +5V

• White: GND

• Green: Hall signal output

Limit Switches

A separate connector provides two built-in end-limit switch circuits.

Important: For Experienced DIY Users Only

This is not a plug-and-play consumer product.

The wire rope must remain under light tension while winding and unwinding. Your project should include reliable cable routing, guides, pulleys, tensioners, springs, counterweights, or other suitable mechanical arrangements.

Do not allow the steel cable to become loose on the drum. Loose wire rope can overlap, jam, stall the motor, overload the gearbox, or eventually damage the mechanism.

This module has substantial torque. Use appropriate mechanical stops, fuses, motor control, and safety protection.

Do not use this product for lifting people, animals, or safety-critical loads.

Package Includes

• 1 × 24V dual-drum cable winder gearmotor assembly

• Installed cable drums and steel wire rope

• Motor power wiring

• Hall sensor connector wiring

• Limit-switch connector wiring

Not Included

• 24V power supply

• Motor driver, relay board, or H-bridge controller

• Mounting hardware

• Pulleys, cable guides, tensioners, or counterweights

• External emergency-stop or safety system
