TCA8418 I2C 4x4 Matrix Keypad Module

Description

Product Description

Shipping, Customs & Duties Notice

For the logistics services we use, shipments to most major developed countries are delivered door to door, and the shipping fee includes customs clearance, dutie…

Read More…

Shipping, Customs & Duties Notice

For the logistics services we use, shipments to most major developed countries are delivered door to door, and the shipping fee includes customs clearance, duties, and taxes. If a particular destination, route, or carrier requires the buyer to pay import duties/taxes separately or provide information for customs declaration or clearance, we will contact you before shipment and will only ship after confirming the required information with you. Please order with confidence and do not worry about unexpected customs charges after purchase.

What is it?

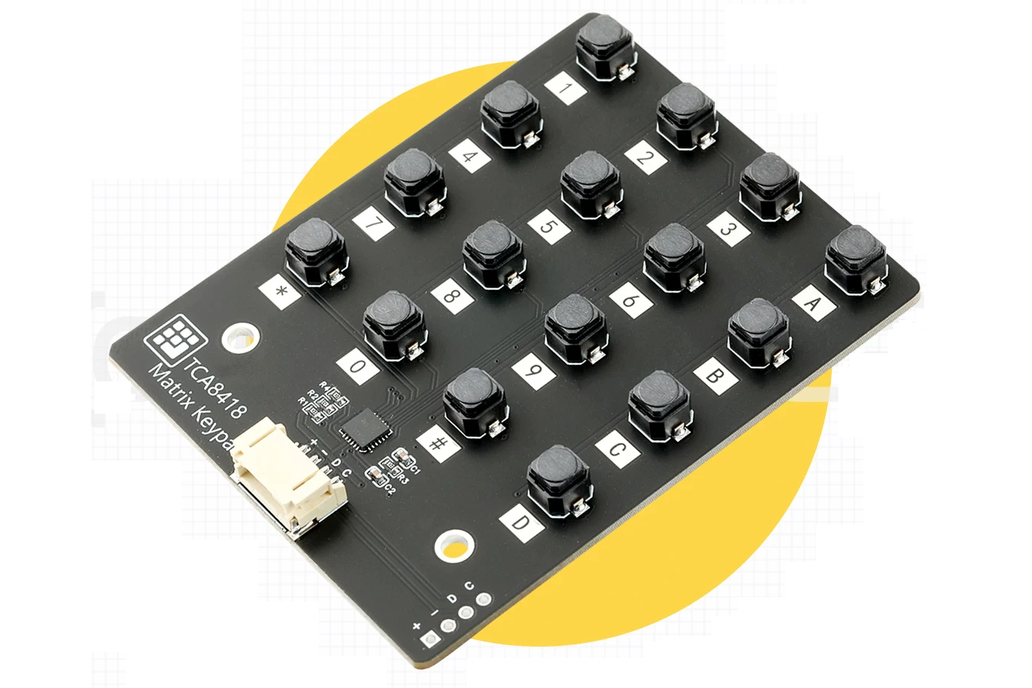

A compact TCA8418 matrix keypad module with a 4x4 tactile-button layout and I2C interface. It uses the TCA8418 keypad scanner / GPIO expansion controller, making it useful for Arduino, ESP32, Raspberry Pi Pico, STM32, and other embedded projects that need a small numeric/function keypad without consuming many MCU pins.

Why did you make it?

Many projects need more buttons than the main controller can easily spare GPIOs for. This board lets a host MCU read a 16-key keypad through I2C, while the TCA8418 handles key scanning, debounce, event buffering, and interrupt signaling.

What makes it special?

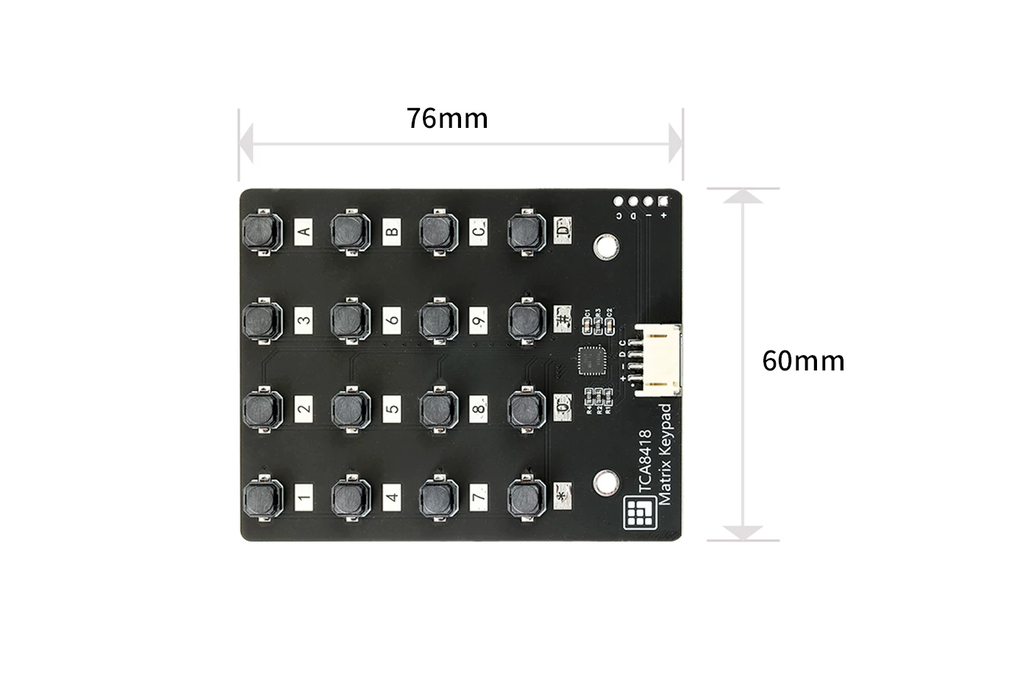

The TCA8418 supports 1.65V to 3.6V operation, 18 GPIO lines, up to 80 keys, I2C Fast-mode Plus up to 1MHz, a 10-byte FIFO for key press/release events, open-drain active-low interrupt output, and integrated ESD protection. The board measures about 76mm x 60mm and includes a 4-pin adapter cable.

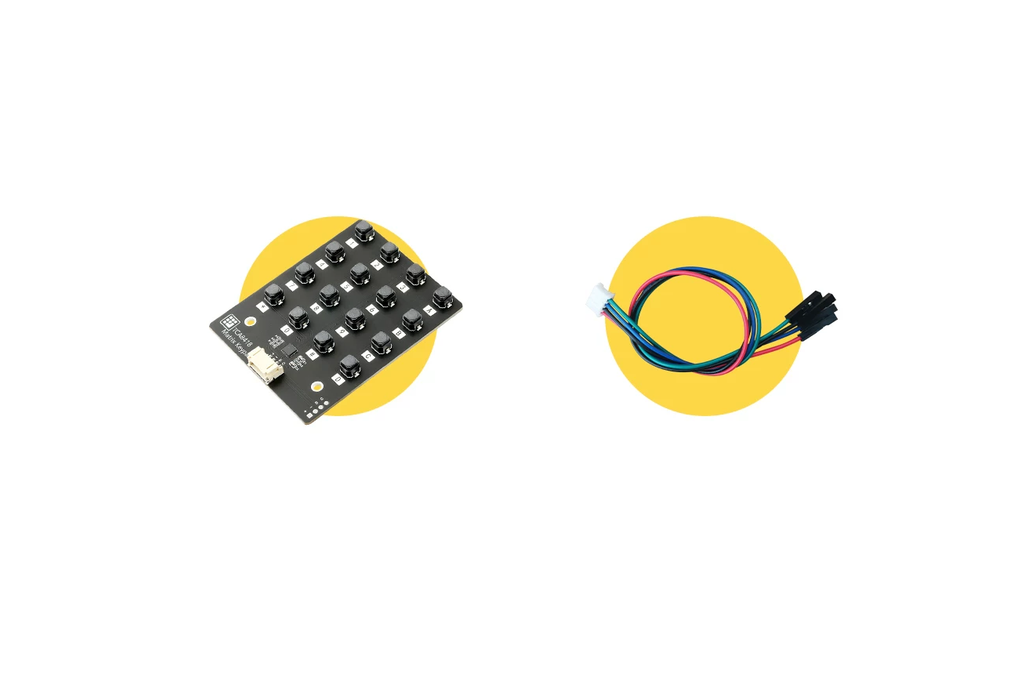

Package includes:

• 1x TCA8418 4x4 matrix keypad module

• 1x 4-pin adapter cable

Pin labels:

• +: VCC / 3.3V

• -: GND

• D: I2C SDA

• C: I2C SCL
