FPGA-based Gigatron TTL kit

Description

Shipping, Customs & Duties Notice

For the logistics services we use, shipments to most major developed countries are delivered door to door, and the shipping fee includes customs clearance, duties, and taxes. If a particular destination, route, or carrier requires the buyer to pay import duties/taxes separately or provide information for customs declaration or clearance, we will contact you before shipment and will only ship after confirming the required information with you. Please order with confidence and do not worry about unexpected customs charges after purchase.

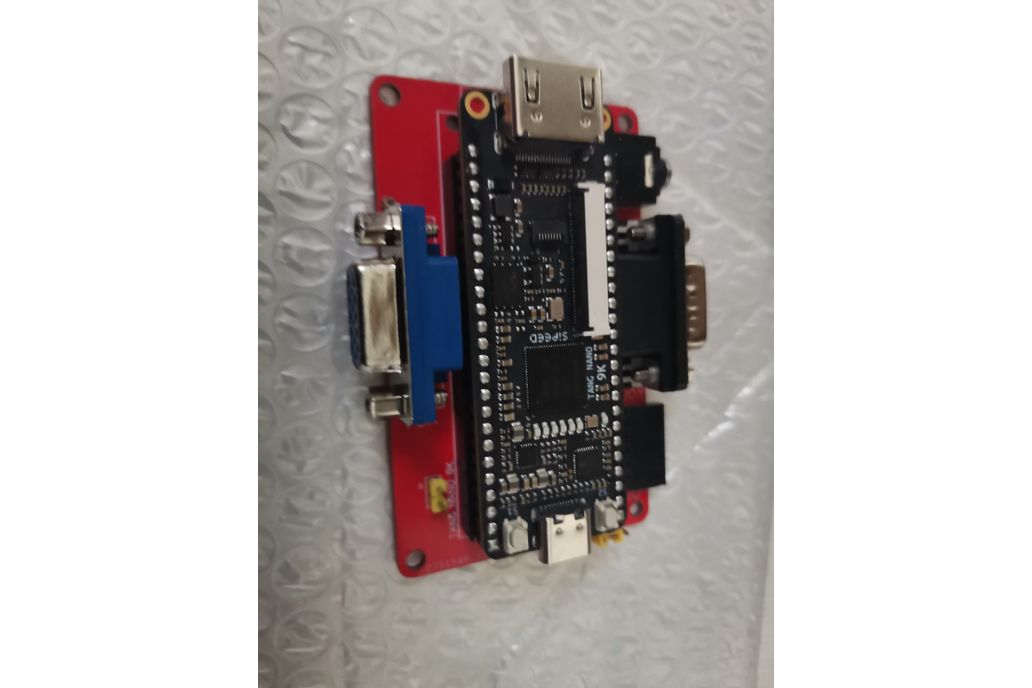

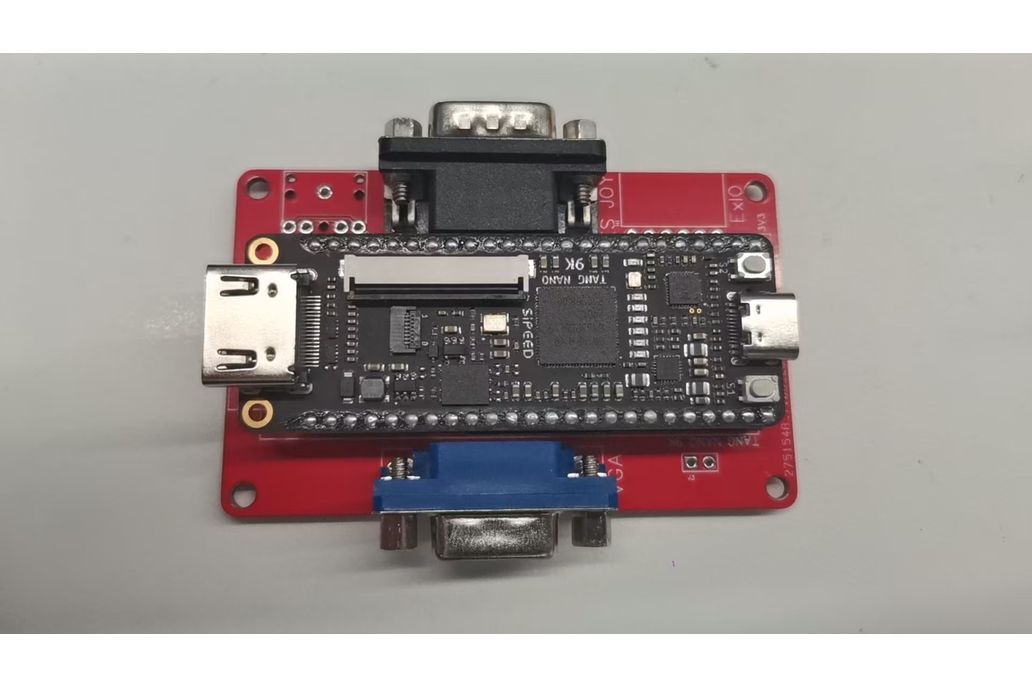

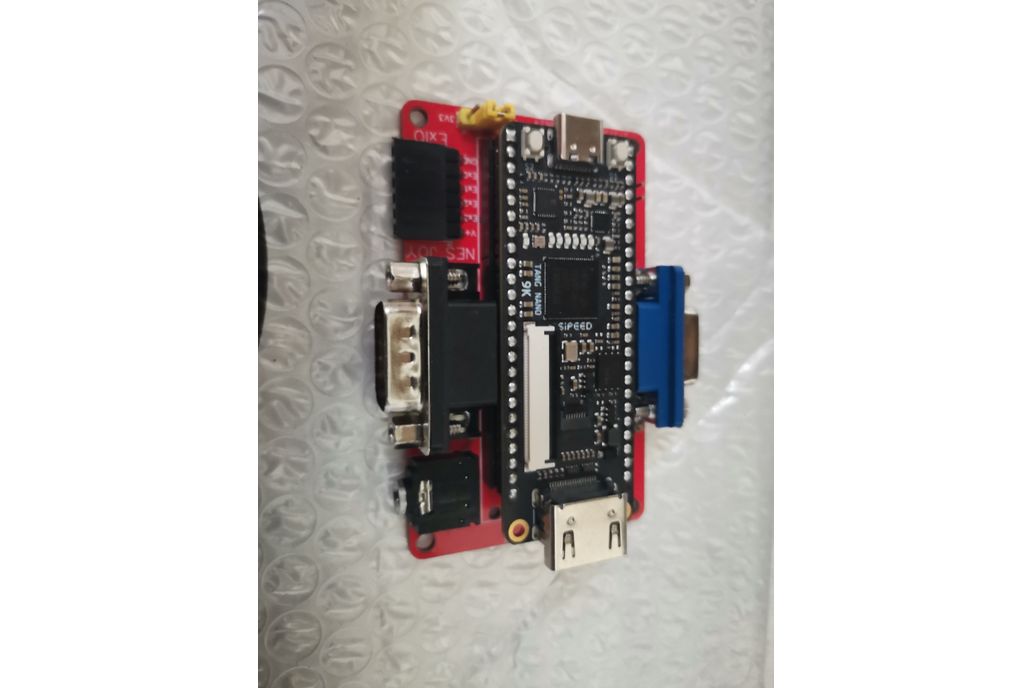

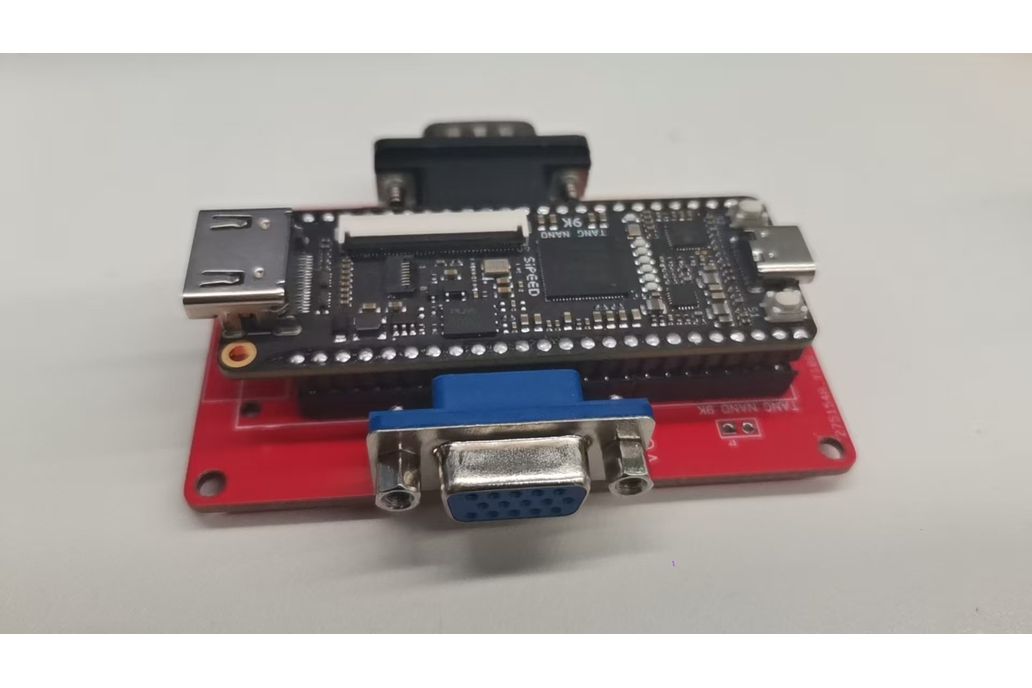

This kit delivers a refined FPGA implementation of the Gigatron TTL microcomputer, originally built from discrete 7400-series TTL chips and ported to the Tang Nano 9K FPGA board
gigatron.io
hackaday.io
. It includes a custom adapter board that handles video and audio D/A conversion using discrete resistors and capacitors for an authentic retro experience
hackaday.io
. The VGA output now leverages an improved level-shifting scheme to eliminate the unstable signals observed with the original auto level converter
hackaday.io
. The XC9572XL CPLD originally used for voltage-level translation has been replaced with readily available components following its discontinuation. All resistor and capacitor networks have been reorganized into a cohesive SMD-only assembly for simplified soldering and lower cost. The result is a complete, low-cost, drop-in kit that preserves every Gigatron feature while providing a smoother build and stable performance for lightweight FPGA learning.

What is it?

A ready-to-solder FPGA-based replica of the Gigatron TTL microcomputer.
Includes FPGA bitstream for the Tang Nano 9K board, adapter PCB, all discrete components, and connectors.
Compatible with standard VGA monitors (160×120 @ ~60 Hz) and NES-style game controllers

Why did you make it?

To overcome the original design’s VGA instability caused by its auto-conversion logic, avoid sourcing the discontinued XC9572XL CPLD, and simplify assembly by moving to an all-SMD RC network.

What makes it special?

Stable VGA output with robust level shifting
Uses easily sourced, modern components in place of discontinued CPLDs
Clean, all-SMD passive network for quick assembly and low cost
Fully retains the vintage Gigatron instruction set, video, and audio capabilities
