Sinclair ZX80 Rev 2 Motherboard mainboard PCB

Description

Shipping, Customs & Duties Notice

For the logistics services we use, shipments to most major developed countries are delivered door to door, and the shipping fee includes customs clearance, duties, and taxes. If a particular destination, route, or carrier requires the buyer to pay import duties/taxes separately or provide information for customs declaration or clearance, we will contact you before shipment and will only ship after confirming the required information with you. Please order with confidence and do not worry about unexpected customs charges after purchase.

ZX80 revision 2 PCB.

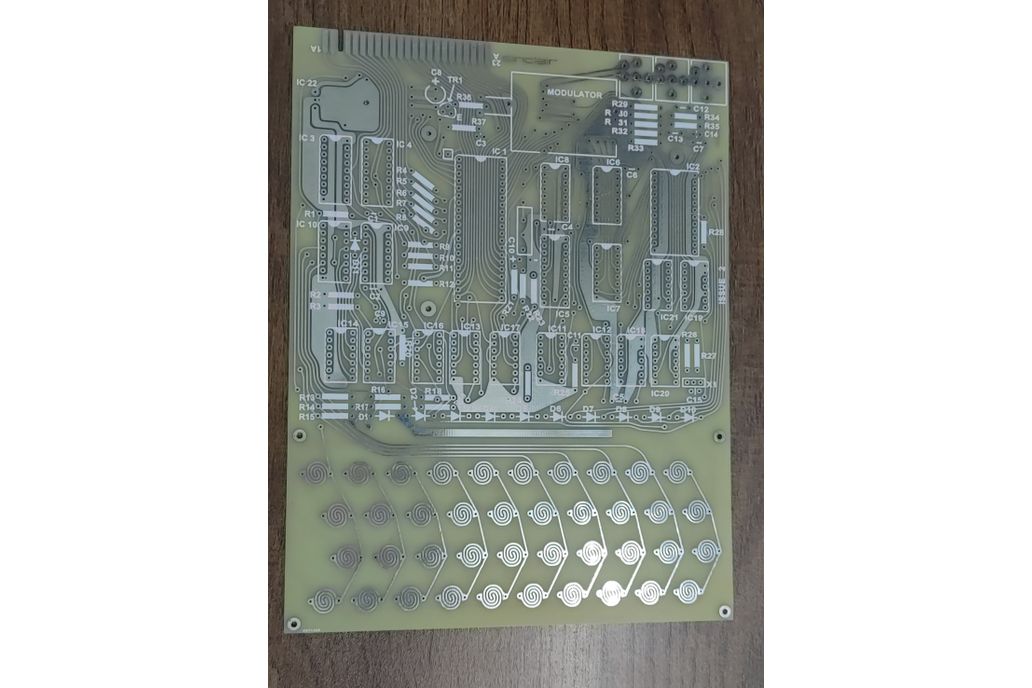

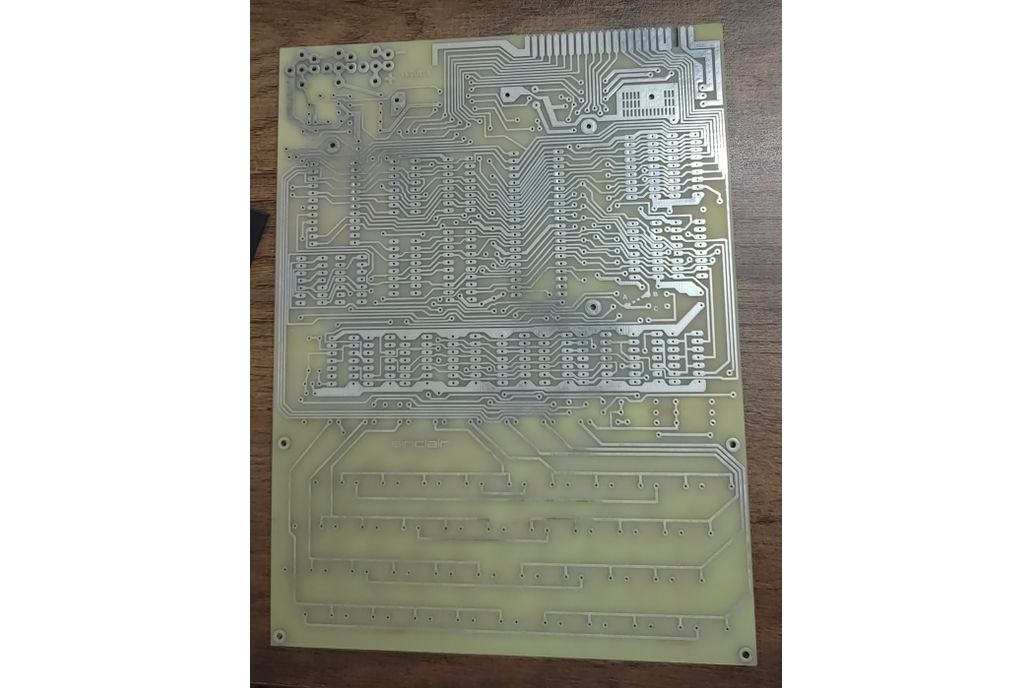

This is a blank ZX80 revision 2 PCB which I have reversed engineer from the original Sinclair design, keeping the same component layout, curved tracks and silkscreen.

Let me know if you want a copy of the BOM.

I have built this and it works perfectly. See the last photo for an example of the display output.

Note: The photo of the fully assembled PCB is for reference only and what it will look like when populated.
You will only be receiving a blank PCB and will need to source and solder in all components yourself.

Please contact me if you have any queries and I will be only too happy to answer them.

Please check out my other items for sale.
